Secure Any Environment with VMP7000 Waterproof Walk-Through Metal Detectors
Since years of ago, the sales of our “VMP”series of detecting gate has been improved all over the world, due to our product makes a stable performance on job even under a very terrible environment. As a matter of fact,
our product has been used in many great international competitive events e.g. Torch Relay of 2008 Olympic Games. World Cup Match of 2009 South Africa. etc.. because of the stable quality of our product. our continuous R&D and innovation in technology. Our detecting gate has the advantages as below:
- Intelligent adjustment
2.Dummy operation
3.Friendly design
4.Left. middle and right regions display
5.Non-ferrous metal separated from black metal
6.Quality of waterproof reaches the highest grade
7.Cylindrical and attractive design (Appearance design patent)
8.Optional6,12 or 18 zones
9.DSP and Microprocessor controlled
10.Waterproof
11.Light weight
12.Optional built in back-up battery
Water resistant
suitable for indoor and outdoor use
Super high sensitivity
capable of detecting tint
metal objects
password protection
prevent any hostile change
of parameters by any unauthorized person.
Strong anti-inference
exact in detecting and
free from mistakes
in reporting
Functions and characters:
1、The whole product is consisted of two parts:
Left-right detecting gatepost+Mainframe
2、Left-right detecting gate board is unified detecting coverage from its
top to bottom:therefore it is called a Sole position metal detecting gate
3、As indicated by the picture,the left-right detecting gate board is formed up by unified mold and each of other parts is utilizing waterproof designs, all these make the product reach the highest standards of waterproof and power leakage protection;it may work properly as normal even the whole device is thoroughly put into water.
4、The structure is in an exquisite design.with light weight and solid stand:
therefore, the product can be assembled,disassembled or moved easily
5、Unique design of integrated circuits,which is stable in function strong
in anti-interference and free from mistakes in reporting.
6、Has the function of password protection to prevent any hostile change
of parameters by any unauthorized person.
7、Has the function of Recover systematic parameters by one-key when
you make some mis-operations, you may recover all ex-work settings just by one key.
8、Has the function to adjust the audio tones, adapting to different usage environments.

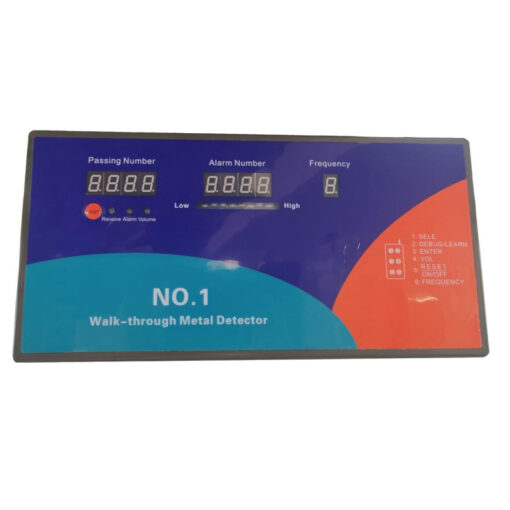

9、Information will be marked down on the front panel e.g.number of persons passed-by,times of alarm,strength of interfering signals,etc.
10、Sensitivity can be adjusted in any degree within its scope;therefore it can meet the customers demand to reject the items e.g.belt buckle gold or silver jewelry, etc.
11.The product does no harmto cardiac pacemaker in human body,hearingaid pregnant woman and CD compact disc. Etc
Cylindrical and attractive design[Appearance design patent]
- Optional 6, 12 or 18 zones
- DSP and Microprocessor controlled
- Waterproof
- Light weight
- Optional built in back-up battery
[remote control]
Data Sheet:
Working power:30W
Voltage AC:110V-220V
Working temperature:-20℃~55℃
External Dimension:2230*940*270mm
Passage Dimension:2000*700*270mm
Door frame Packing Dimension:2280*420*410mm
Net Weight: 32kg
Door frame Gross weight: 38kg
